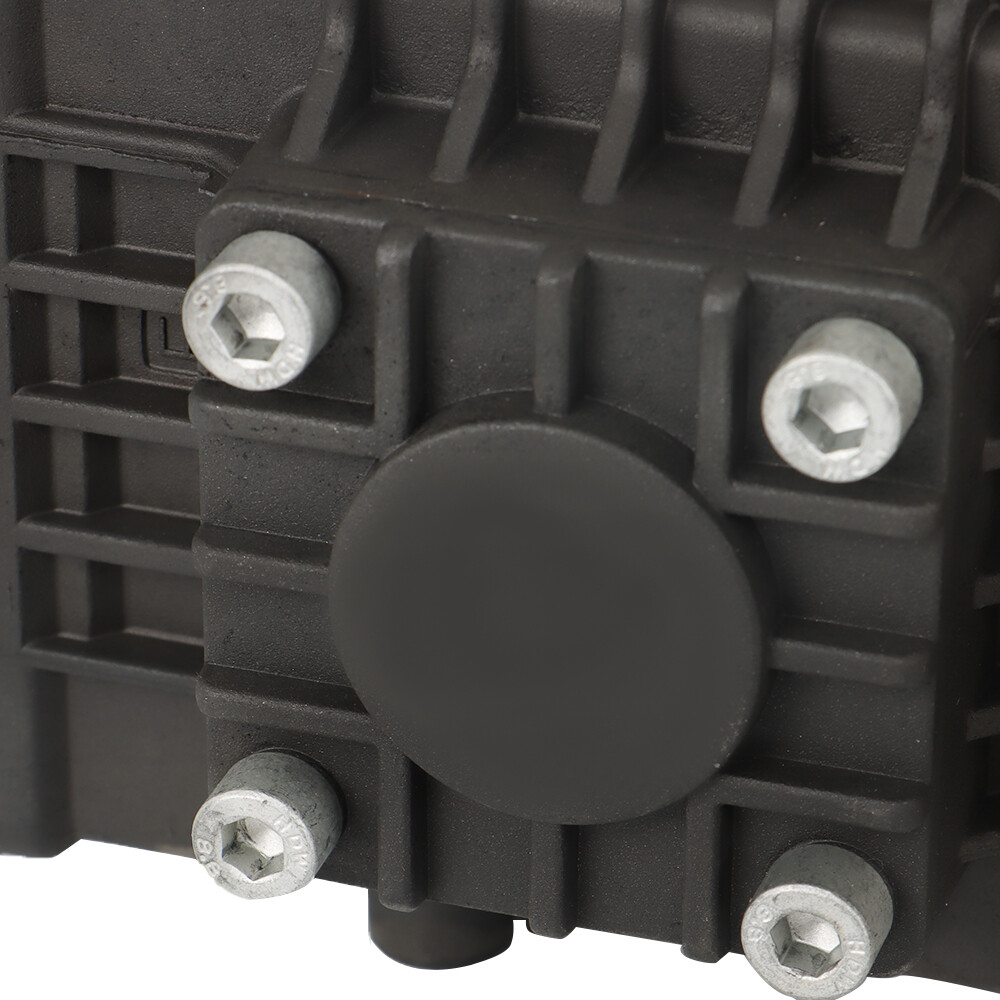

3600 PSI Pressure Power Washer Pump 24mm Solid Shaft 4.9GPM Belt Drive
USD $140.41
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
Description:
Will Replace General pump TS series. AR Rk sries .
Does not ship with frame Rails, Using existing frame rails may need modification.
Unloader Valve Included, Can be used with Universal external bypass unloaders as well.
1/2" NPT inlet / 3/8" NPT Out.
24mm shaft.
Spare parts (seals, valves and plungers) are available.
These pumps ship with no oil . Please remember to fill with oil before use (as per included instructions).
The oil should be changed after the first 10hrs of use (break in period) and then after every 100hrs.
Features:
Forged brass manifold, Stainless Steel valve springs.
Plasma Coated Ceramic plunger,to increase resistance to pitting and wear, for maximum durability.
Strengthened one-piece alloy aluminum connecting rod.
German Parker Seal packings.
Ball and roller bearing on the crank shaft, for maximum life and load distribution.
Bolt-on pressure adjustable unloaded Stainless steel banjo bolt in-line water filter, Fixed rate detergent injector. (injector Hose included.)
Specification:
GPM:4.94 at 1750RPM - 4.1GPM at 1450 RPM
HP:10Hp Electric / 13HP Gas
RPM:1750 rpm max
Stroke:12mm
Max PSI:3600
Shaft:24mm
Bore:18mm
About Delivery:
We have warehouses in California and New Jersey.
We will follow the principle of nearest delivery.
When one warehouse is out of stock, it will be shipped from another warehouse.
Thank you for your understanding.
Package Product List:
As The Picture Shows
Item SpecificsBrand ALL-CARBMPN Does Not ApplyPower Source Gas/ElectricFeatures 24 mm shaftMaximum Pressure 3600 psiMax. Pressure 3600Model 1814bType Parts - Pressure Washer PumpProduct Line triplex pumpWarranty 1 year
